DOW Glycol-Based Thermal Fluid Solutions
Douglas ProTech is an authorized channel partner for global industry leader DOW Chemical Company, and carries a range of DOW thermal fluid products in custom formulations to meet your system needs.
The DOW products we carry include:
- DOWFROST™ Heat Transfer Fluid
- DOWFROST™ HD Heat Transfer Fluid
- DOWCAL™ 200
- DOWTHERM™ SR-1 Heat Transfer Fluid
- DOWTHERM™ 4000
- SYLTHERM™ XLT
Specialized Heat Transfer Fluid Brands
Globally-recognized chemical industry leader DOW Chemical Company has a portfolio of specialized heat transfer fluid brands: DOWCAL™, DOWFROST™, DOWTHERM™, and SYLTHERM™. The product portfolio Douglas ProTech offers as a DOW channel partner includes fluids with wide operating temperature ranges, good heat transfer coefficients, and options for specialized needs such as low toxicity or food-grade applications. Douglas ProTech mixes customized DOW concentrations to suit your specifications.
Our DOW Product List:
DOWFROST™ Heat Transfer Fluid
DOWFROST™ HD Heat Transfer Fluid
DOWCAL™ 200
DOWTHERM™ SR-1 Heat Transfer Fluid
DOWTHERM™ 4000
SYLTHERM™ XLT
Applications
HVAC, closed water loop refrigeration, chillers & boilers, chill water and hydronic heating loops, secondary heat transfer loops, food & beverage processing, chilling and freezing, cold room dehumidification, solar heating, energy production and distribution, semiconductor, pharmaceutical, medical/MRI, geothermal, railroad, and other systems and industries.
Ingredients
Glycols in varying percentages.
Custom options:
- Inhibitor – buffer package to prevent corrosion and slow the formation of glycolic acid
- Leak detection dye in red, blue, or UV, available at no additional cost
- Wide range of custom packaging and shipping options
Product Options
These DOW products are available in:
1 gallon (6 gal/case), 5 gallon, 55 gallon, larger totes and bulk tanker truckloads.
Application Guidelines
Refer to system installation and maintenance manuals for specific instructions.
Visit the DOW website for more info about their glycol-based heat transfer fluids.

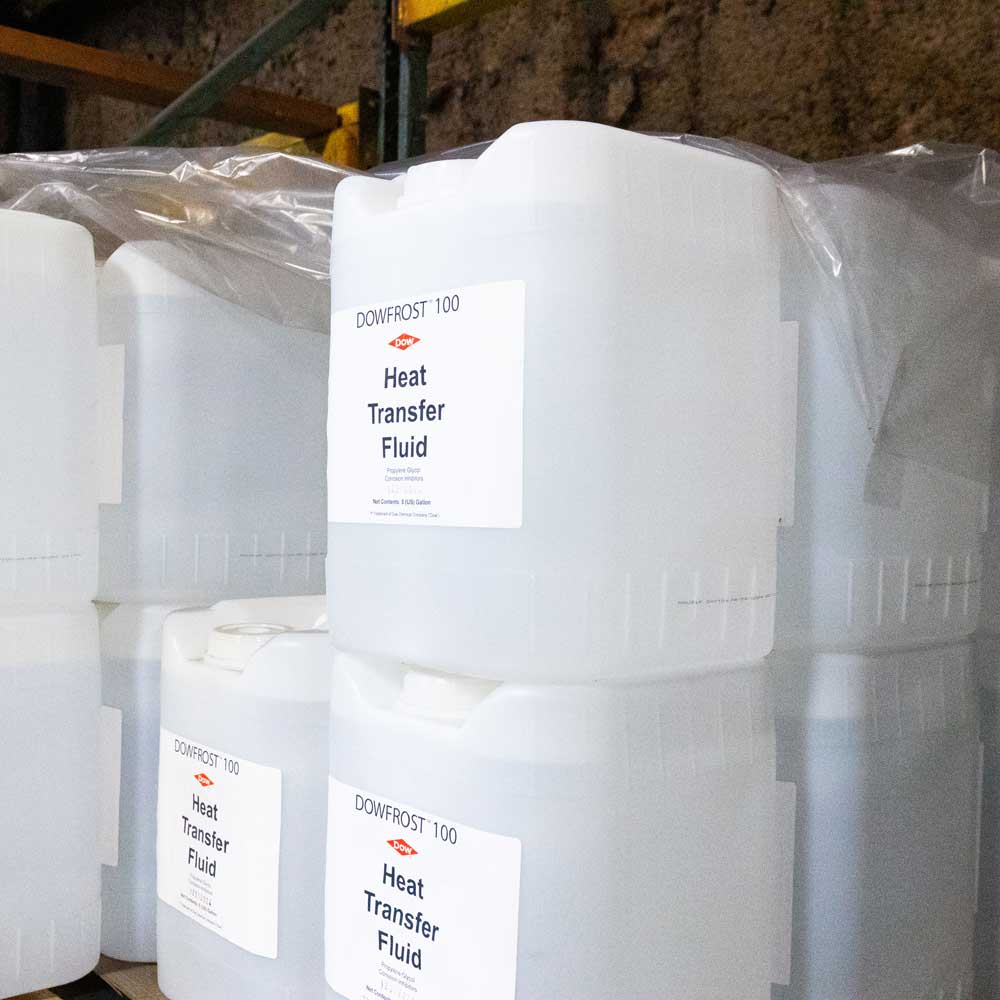

DOWFROST™ Heat Transfer Fluid
Overview
DOWFROST™ Heat Transfer Fluid is a formulation of 96.0 percent food grade propylene glycol plus food grade corrosion inhibitors. Solutions of this in water provide freeze protection to below -60°F (-50°C) and burst protection to below -100°F (-73°C). It is made entirely from food grade raw materials conforming to FDA CFR 21 and NSF guidelines and is acceptable for use as a heat transfer fluid where there is possibility of incidental food contact.
Features & Benefits
DOWFROST™ Heat Transfer Fluid is the only inhibited glycol made with DOW PuraGuard™ Propylene Glycol USP/EP, a pharmaceutical grade of monopropylene glycol with specified purity greater than 99.8%. Prolong fluid lifetime and lower the cost of ownership by using DOWFROST heat transfer fluid, made with the highest industry purity propylene glycol combined with long lasting, food safe, corrosion inhibitors.
DOWFROST™ Heat Transfer Fluid is available in full concentrate or a pre-diluted ratio for your system needs.
Properties:
| Brand | DOW |
| Recommended Use | Heating and Cooling |
| Product Type | Glycol-Water HTF |
| Fluid Base | Inhibited Propylene Glycol |
| Temperature Use Range in °F(°C) | 0 to 250 (-18 to 121) |
| Freezing Point in °F(°C) | -60 (-51) *when diluted to 60% |
| Maximum Operating Temperature in °F(°C) | 250 (120) |
DOWFROST™ HD Heat Transfer Fluid
Overview
DOWFROST™ HD Heat Transfer Fluid is a 94.0 percent propylene glycol formulation and a specially designed industrial corrosion inhibitor package. The fluid is dyed fluorescent yellow-green for leak detection purposes. Solutions of this in water provide freeze protection to below -60°F (-50°C) and burst protection to below -100°F (-73°C). It is widely used within the HVAC industry or wherever low toxicity environmental heat transfer fluids are needed.
Features & Benefits
DOWFROST™ HD Heat Transfer Fluid is the only inhibited glycol made with DOW PuraGuard™ Propylene Glycol USP/EP, a pharmaceutical grade of monopropylene glycol with specified purity greater than 99.8%. By contrast, competitor products are often made from recycled or industrial-grade glycols or from glycols derived from bio-renewable sources. These glycols typically do not meet USP specifications.
DOWFROST™ HD Heat Transfer Fluid is available in full concentrate or a pre-diluted ratio for your system needs.
Properties:
| Brand | DOW |
| Recommended Use | Heating and Cooling |
| Product Type | Glycol-Water HTF |
| Fluid Base | Inhibited Propylene Glycol |
| Temperature Use Range in °F(°C) | 0 to 325 (-18 to 163) |
| Freezing Point in °F(°C) | -60 (-51) *when diluted to 60% |
| Maximum Operating Temperature in °F(°C) | 250 (120) |
DOWCAL™ 200
Overview, Features & Benefits
DOWCAL™ 200 is a propylene glycol-based heat transfer fluid for use in a wide range of industrial, construction and infrastructure applications. Its low acute toxicity makes DOWCAL™ 200 especially suitable for applications where toxicity is a concern. Recommended operating temperature of this fluid ranges from -60°F (-50°C) to 350°F (175°C). Recommended concentration is 30% to 60%.
DOWCAL™ 200 Heat Transfer Fluid is available in full concentrate or a pre-diluted ratio for your system needs.
Properties:
| Brand | DOWCAL |
| Recommended Use | Heating and Cooling |
| Product Type | Glycol-Water HTF |
| Fluid Base | Inhibited Propylene Glycol |
| Temperature Use Range in °F(°C) | 0 to 325 (-18 to 163) |
| Freezing Point in °F(°C) | 50% vol water -27.4(-33) |
| Maximum Operating Temperature in °F(°C) | 350 (175) |
DOWTHERM™ SR-1 Heat Transfer Fluid
Overview
DOWTHERM™ SR-1 Heat Transfer Fluid provides exceptional thermal stability to meet system requirements for demanding temperature control applications such as pharmaceuticals, oil and gas, and chemical processing, HVAC or wherever low freezing water-based heat transfer fluids are needed.
Features & Benefits
DOWTHERM™ SR-1 is a formulation of 95.5 weight percent virgin ethylene glycol, never blended with other glycol streams (and not containing recycled glycol) as a means of ensuring maximum fluid lifetime. DOWTHERM™ SR-1 is specially formulated with heavy-duty industrial inhibitor packages that prevent corrosion. The inhibitors are easily maintained, long lasting and replenishable, which means intervals between fluid changeouts are extended and fluid expense is minimized. The fluid is dyed fluorescent pink for leak detection purposes. Solutions of this in water provide freeze protection to below -60°F (-50°C) and burst protection to below -100°F (-73°C).
DOWTHERM™ SR-1 Heat Transfer Fluid is available in full concentrate or a pre-diluted ratio for your system needs.
Properties:
| Brand | DOWTHERM |
| Recommended Use | Heating and Cooling |
| Product Type | Glycol-Water HTF |
| Fluid Base | Inhibited Ethylene Glycol |
| Temperature Use Range in °F(°C) | -20 to 250 (-29 to 121) |
| Freezing Point in °F(°C) | -60 (-51) *when diluted to 60% |
| Maximum Operating Temperature in °F(°C) | 250 (120) |
DOWTHERM™ 4000
Overview
DOWTHERM™ 4000 is specially formulated with inhibitors to offer greater thermal stability and corrosion protection. It features the highest maximum use temperature of any glycol. The fluid is dyed fluorescent orange to aid in leak detection.
Features & Benefits
DOWTHERM™ 4000 is a formulation of 95.5 weight percent virgin ethylene glycol, never blended with other glycol streams (and not containing recycled glycol) as a means of ensuring maximum fluid lifetime. Dow fluids are specially formulated with heavy-duty industrial inhibitor packages that prevent corrosion. The inhibitors are easily maintained, long-lasting, and replenishable, which means intervals between fluid changeouts are extended, and fluid expense is minimized. The fluid is dyed fluorescent orange for leak detection purposes. Solutions of this in water provide freeze protection to below -60°F (-50°C) and burst protection to below -100°F (-73°C).
Properties:
| Brand | DOWTHERM |
| Recommended Use | Heating and Cooling |
| Product Type | Glycol-Water HTF |
| Fluid Base | Ethylene Glycol |
| Temperature Use Range in °F(°C) | -20 to 350 (-29 to 175) |
| Freezing Point in °F(°C) | -60 (-51) *when diluted to 60% |
| Maximum Operating Temperature in °F(°C) | 350 (175) |
SYLTHERM™ XLT
Overview
SYLTHERM™ XLT is a specially formulated, high-performance silicone polymer designed for use as a low-temperature, liquid-phase heat transfer fluid, offering outstanding low-temperature heat transfer and pumpability. It is highly stable, long-lasting and has low potential for fouling. Due to its thermal stability, this low-viscosity silicone fluid offers excellent heat transfer performance and long service life.
Features & Benefits
SYLTHERM™ XLT is suitable for high and low liquid phase heat transfer mediums, offering low odor and toxicity. This formulation resists degradation and typically does not need replenishment, leading to lower ongoing operational expenses.
SYLTHERM™ is a versatile heat transfer fluid with numerous applications, including oil & gas, pharmaceutical, chemical processing, and any applications needing precise temperature regulation in reactors and heating systems, and in heat exchangers and thermal management systems to optimize energy efficiency. For low-temperature applications, SYLTHERM™ delivers reliable performance in refrigeration, chillers, and cooling systems.
| Brand | SYLTHERM |
| Recommended Use | Heating and Cooling |
| Product Type | Siloxane Polymer HTF |
| Fluid Base | Silicone |
| Temperature Use Range in °F(°C) | -150 to 600 (-100 to 260) |
| Freezing Point in °F(°C) | -168 (< -111) |
| Maximum Operating Temperature in °F(°C) | 500 (260) |

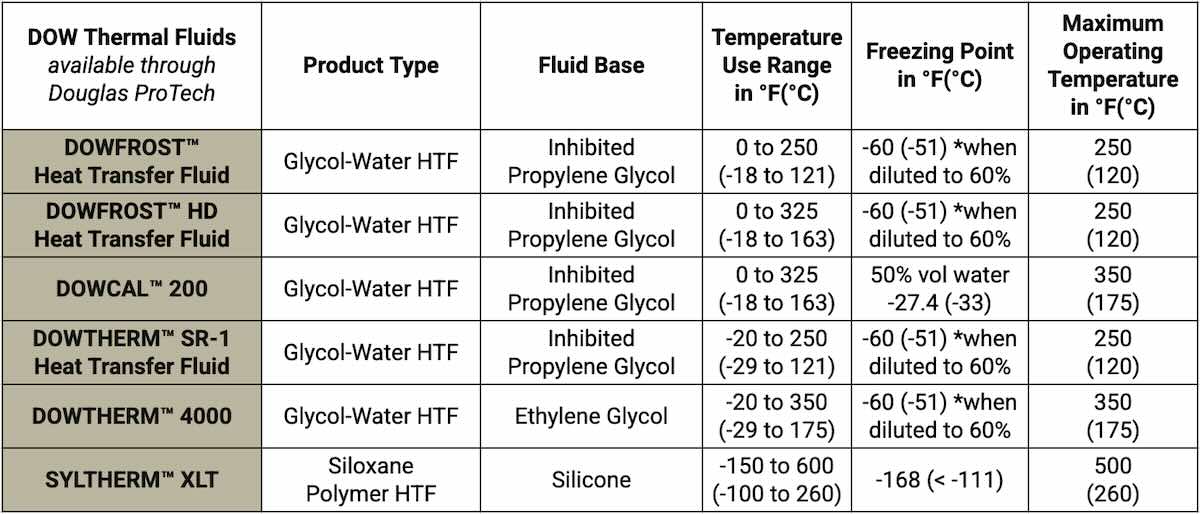

DOW Product Comparison
